Intake-Air System Vacuum Hose Routing Diagram

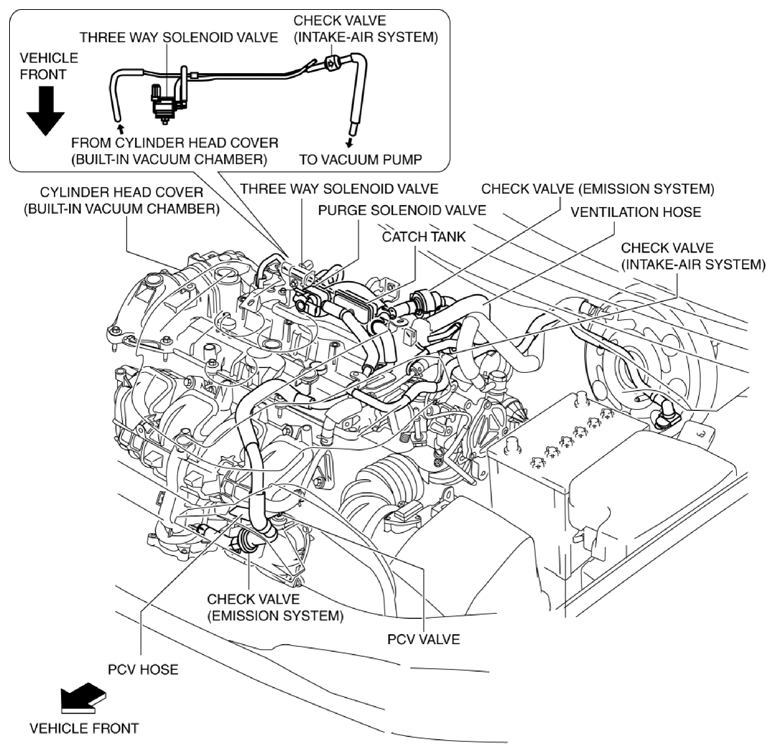

Fig 1: Intake-Air System Vacuum Hose Routing Diagram

G10946758

Courtesy of MAZDA MOTORS CORP.
