Fresh-air Duct Removal Note

  1. While moving the tabs in the direction shown in the figure, rotate the fresh-air duct.

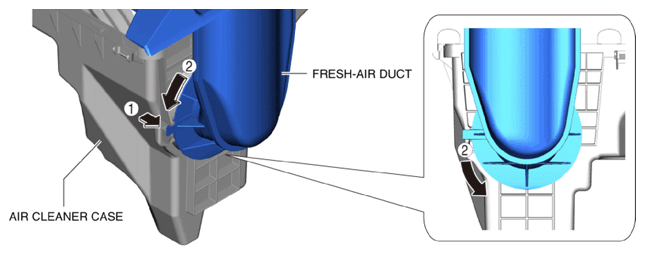

    Fig 1: Removing Fresh-Air Duct
    G10946762Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
