Intake-Air System And Turbocharger
>>
Intake-Air System Diagram
Intake-Air System Diagram

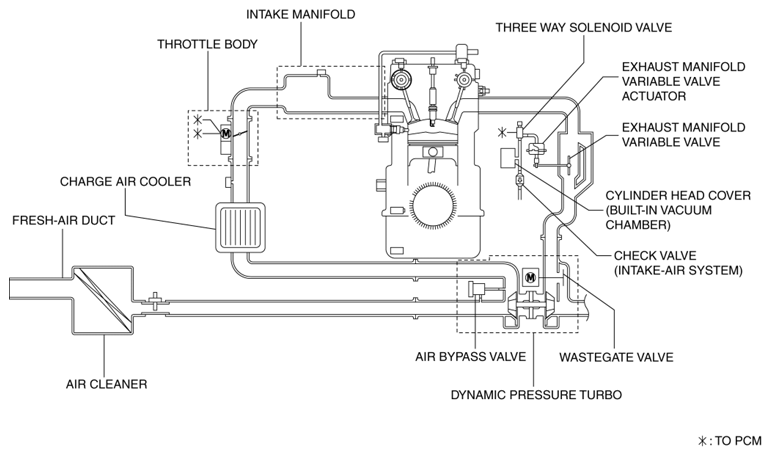

Fig 1: Intake-Air System Operation Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
