Check Valve (Intake-Air System) Removal/Installation: Notes

  1. Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

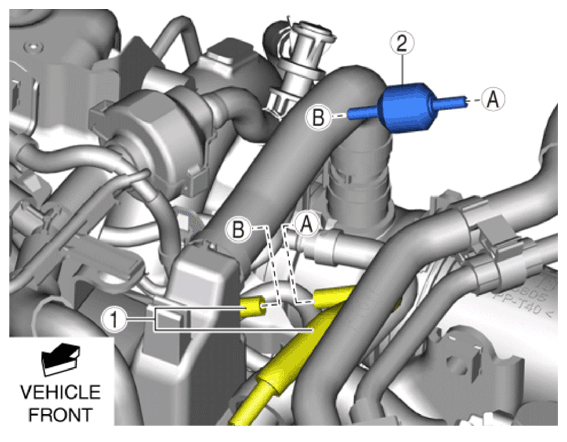

    Fig 1: Identifying Vacuum Hose And Check Valve
    G10946790Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Vacuum hose
    2 Check valve
    (See Check Valve Installation Note .)
  3. Install in the reverse order of removal.
