Radar Unit Removal/Installation
WARNING:
- If the radar unit is installed at an incorrect angle, the radar unit cannot detect obstructions and the system may not operate normally. When installing the radar unit, verify that there is no damage or deformation to the installation part (shroud panel) and perform the installation correctly.
- If the radar unit (front bumper, radiator grille) gets hit, the radar unit angle could change and obstructions cannot be detected correctly which could result in an accident. In this case, always verify the DTC, perform the radar unit aiming adjustment, and verify that the installation angle is deviated. (Refer to RADAR UNIT AIMING .)
- Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION )
- Remove the following parts:
- Front bumper (Refer to FRONT BUMPER REMOVAL .) (Refer to FRONT BUMPER INSTALLATION )
- Front combination light (Refer to FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Set plate (Refer to SET PLATE REMOVAL/INSTALLATION .)

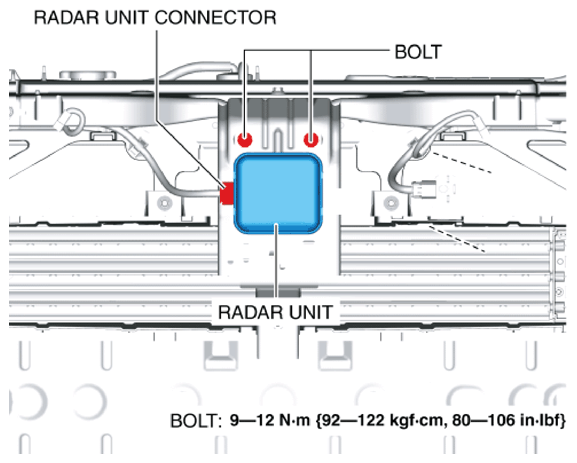

- Disconnect the radar unit connector.
- Remove the bolts.
- Remove the radar unit.
- Install in the reverse order of removal.
- If the radar unit and radar unit bracket are replaced, perform the radar unit aiming adjustment. (Refer to RADAR UNIT AIMING .)
