Brake Switch Inspection

CAUTION:
  • Inspect the brake switch with it installed to the brake pedal, otherwise the brake switch may not operate normally. If the brake switch is removed from the brake pedal, replace the brake switch with a new one.
  1. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
  2. Remove the front heat duct (LH). (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the brake switch connector.
  4. Verify that the continuity is as indicated in the table.
    Fig 1: Checking Continuity Between Brake Switch Terminals
    G10985952Courtesy of MAZDA MOTORS CORP.

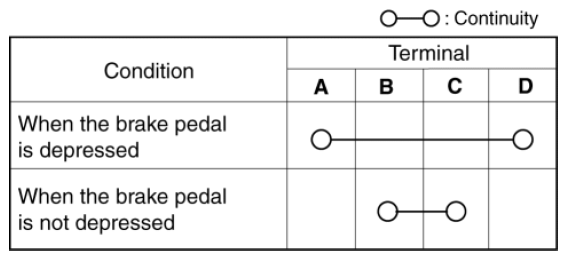

    Fig 2: Brake Switch Terminals Continuity Chart
    G10985953Courtesy of MAZDA MOTORS CORP.
