Trunk Lid Garnish Removal/Installation

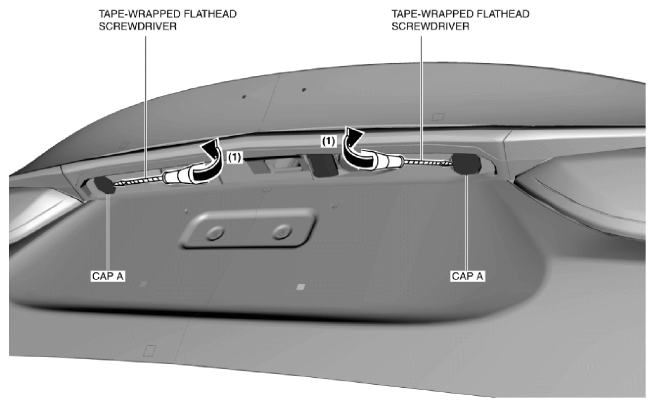

Insert a tape-wrapped flathead screwdriver under caps A shown in the figure and remove caps A in the direction of arrow (1).

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Under Caps A
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver under caps B shown in the figure and remove cap B in the direction of arrow (2).

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Under Caps B
Courtesy of MAZDA MOTORS CORP.
Remove bolts C.

Fig 3: Identifying Trunk Lid Garnish Bolt
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into clips D and guides E shown in the figure and remove clips D and guides E in the direction of the arrows in the order of (3), (4).

Fig 4: Removing Clips D And Guides E Of Trunk Lid Garnish Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.

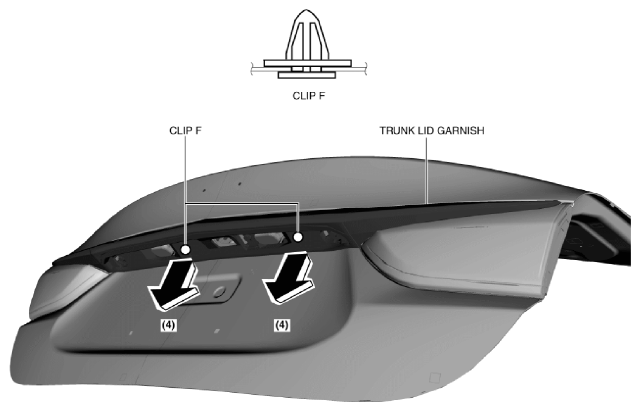

Pull the trunk lid garnish in the direction of the arrow (4) and remove it while detaching clips F.

Fig 5: Pulling Out Trunk Lid Garnish
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
