FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

  1. Lift up the vehicle.
  2. Remove fasteners.

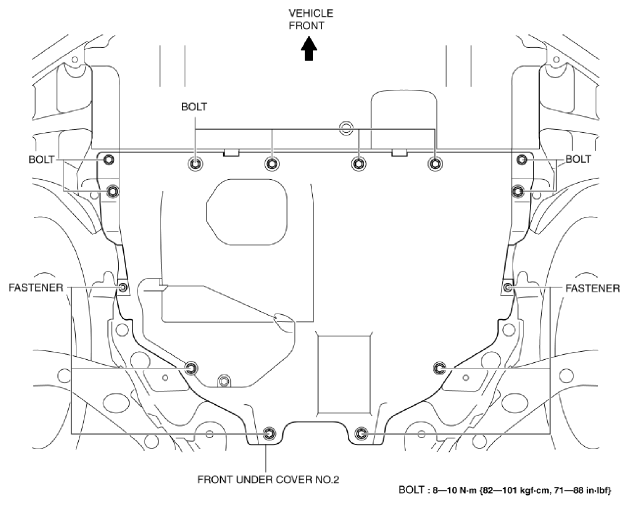

    Fig 1: Identifying Front Under Cover No. 2 With Bolts And Fasteners
    G10992132Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolts.
  4. Remove the front under cover No. 2.
  5. Install in the reverse order of removal.
