Radar Unit Removal/Installation
WARNING:
- If the radar unit is installed at an incorrect angle, the radar unit cannot detect obstructions and the system may not operate normally. When installing the radar unit, verify that there is no damage or deformation to the installation area (shroud panel) and perform the installation correctly.
- If the radar unit (front bumper, radiator grille) gets hit, the radar unit angle could change and obstructions cannot be detected correctly which could result in an accident. In this case, always verify the DTC, perform the radar unit aiming adjustment, and verify that the installation angle has not deviated. (See RADAR UNIT AIMING .)
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.

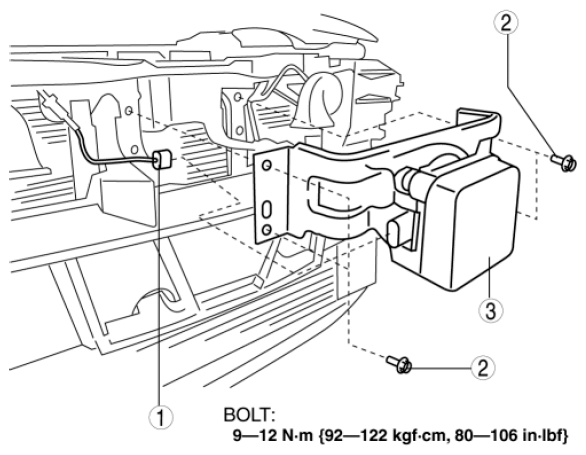

COMPONENT DESCRIPTION1 Radar unit connector 2 Bolt 3 Radar unit - Install in the reverse order of removal.
- If the radar unit and radar unit bracket are replaced, perform the radar unit aiming adjustment. (See RADAR UNIT AIMING .)
