Evaporative hose No. 3 installation note

1. Install the evaporative hose No. 3 as shown in the figure.

Body side

Fig 1: Installing Evaporative Hose No. 3 (Body Side)

Courtesy of MAZDA MOTORS CORP.

Fuel tank pressure sensor side

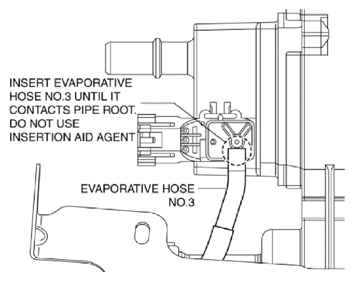

Fig 2: Installing Evaporative Hose No. 3 (Fuel Tank Pressure Sensor Side)

Courtesy of MAZDA MOTORS CORP.
