Charcoal Canister Removal/Installation
>>
U.S.A. And CANADA
>>
Evaporative hose No. 1 installation note
Evaporative hose No. 1 installation note
Install the evaporative hose No. 1 as shown in the figure.

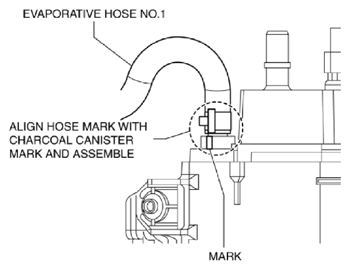

Fig 1: Installing Evaporative Hose No. 1
Courtesy of MAZDA MOTORS CORP.
