Leakage inspection
- Perform the following procedures:
- Do not operate CV solenoid valve.

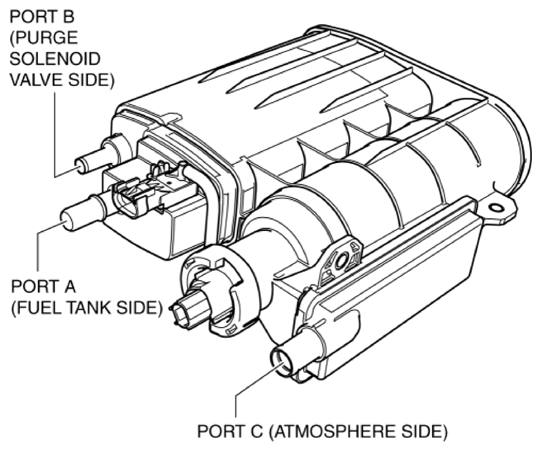

- Assemble the hose used for inspection to port A.
- Cover ports B and C with the caps.
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

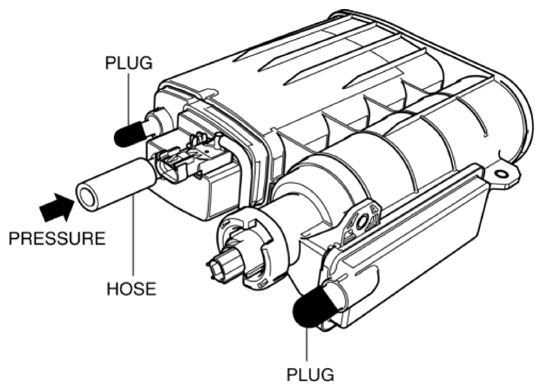

- Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}
) through the hose, and verify that air does not leak from the charcoal canister.
Courtesy of MAZDA MOTORS CORP.
