Leakage inspection

  1. Perform the following procedures:
    • Assemble the hose used for inspection to port A.
    • Cover ports B and C with the caps.

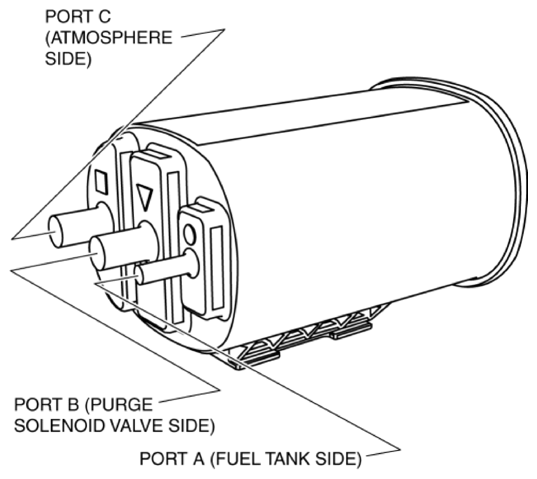

    Fig 1: Identifying Charcoal Canister Ports
    G10985471Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.
  2. Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}  ) through the hose, and verify that air does not leak from the charcoal canister.

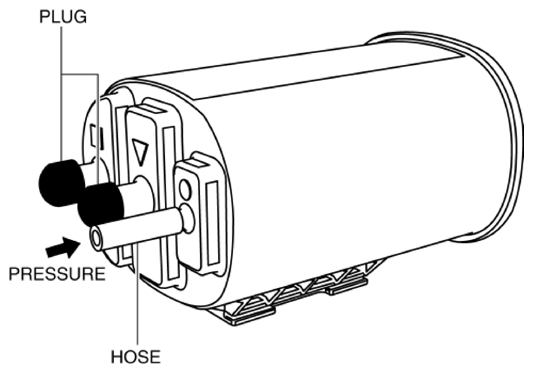

Fig 2: Applying Pressure Through Hose
G10985472Courtesy of MAZDA MOTORS CORP.
