DTC C0031-01; C0031-13; C0034-01; C0034-13; C0037-01; C0037-13; C003A-01; C003A-13: Abs Wheel-Speed Sensor: Notes

DTC	C0031:01/C0031:13		LF ABS wheel-speed sensor
	C0034:01/C0034:13		RF ABS wheel-speed sensor
	C0037:01/C0037:13		LR ABS wheel-speed sensor
	C003A:01/C003A:13		RR ABS wheel-speed sensor
DETECTION CONDITION		C0031:01/C0034:01/C0037:01/C003A:01 Short to ground has been detected in the ABS wheel-speed sensor wiring harness on any of the four vehicle wheels. C0031:13/C0034:13/C0037:13/C003A:13 Open circuit has been detected in the ABS wheel-speed sensor wiring harness on any of the four vehicle wheels.
FAIL-SAFE FUNCTION		Refer to "Fail-safe Function Malfunction Contents". (See DTC TABLE [DYNAMIC STABILITY CONTROL (DSC)] .)

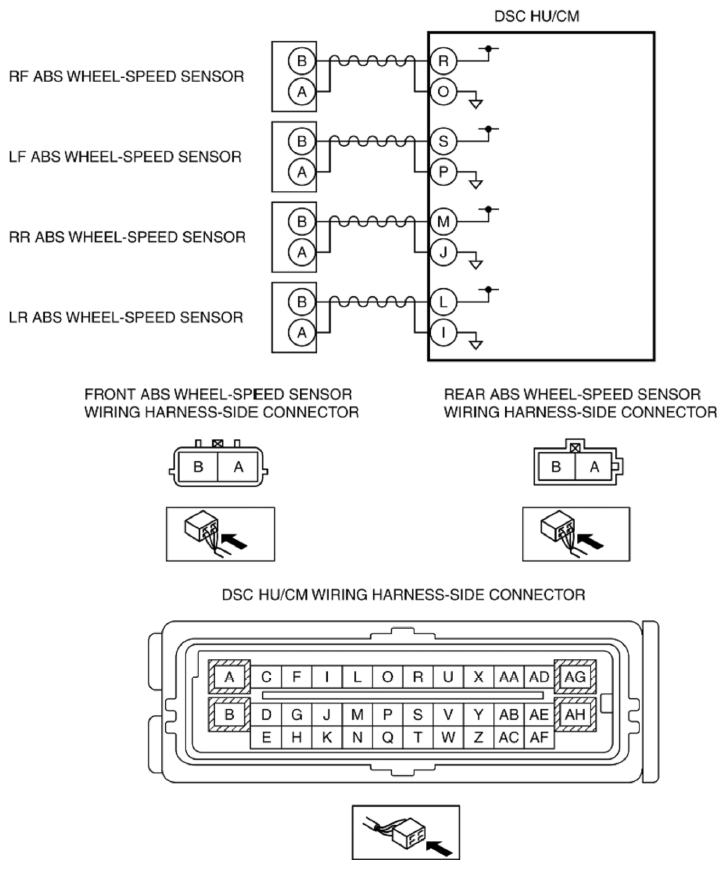

POSSIBLE CAUSE		Open circuit or short to ground in the wiring harness between the following DSC HU/CM terminals and ABS wheel-speed sensor terminals: DSC HU/CM terminal R-RF ABS wheel-speed sensor terminal B DSC HU/CM terminal O-RF ABS wheel-speed sensor terminal A DSC HU/CM terminal S-LF ABS wheel-speed sensor terminal B DSC HU/CM terminal P-LF ABS wheel-speed sensor terminal A DSC HU/CM terminal M-RR ABS wheel-speed sensor terminal B DSC HU/CM terminal J-RR ABS wheel-speed sensor terminal A DSC HU/CM terminal L-LR ABS wheel-speed sensor terminal B DSC HU/CM terminal I-LR ABS wheel-speed sensor terminal A Malfunction in the ABS wheel-speed sensor DSC HU/CM malfunction Poor connection at connectors (female terminal)
