Symptom Troubleshooting [Electric Parking Brake]
>>
Electric Parking Brake Switch Indicator Light Is On Or Off Constantly
>>
System Wiring Diagram
System Wiring Diagram

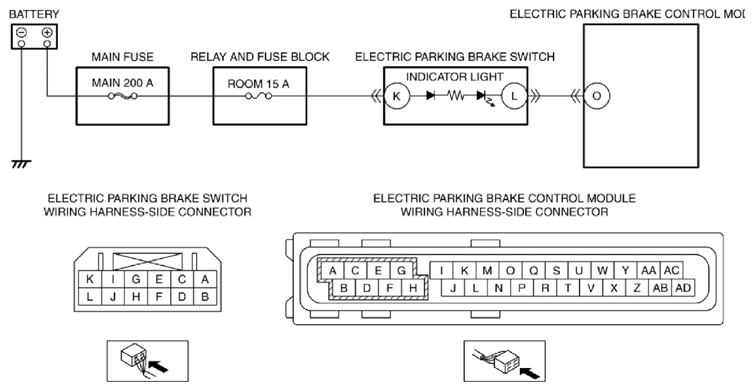

Fig 1: Electric Parking Brake Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
