Brakes
>>
Parking Brake System
>>
Symptom Troubleshooting [Electric Parking Brake]
>>
Electric Parking Brake Automatic Release Function During Acceleration Malfunctions
>>
System Wiring Diagram
System Wiring Diagram

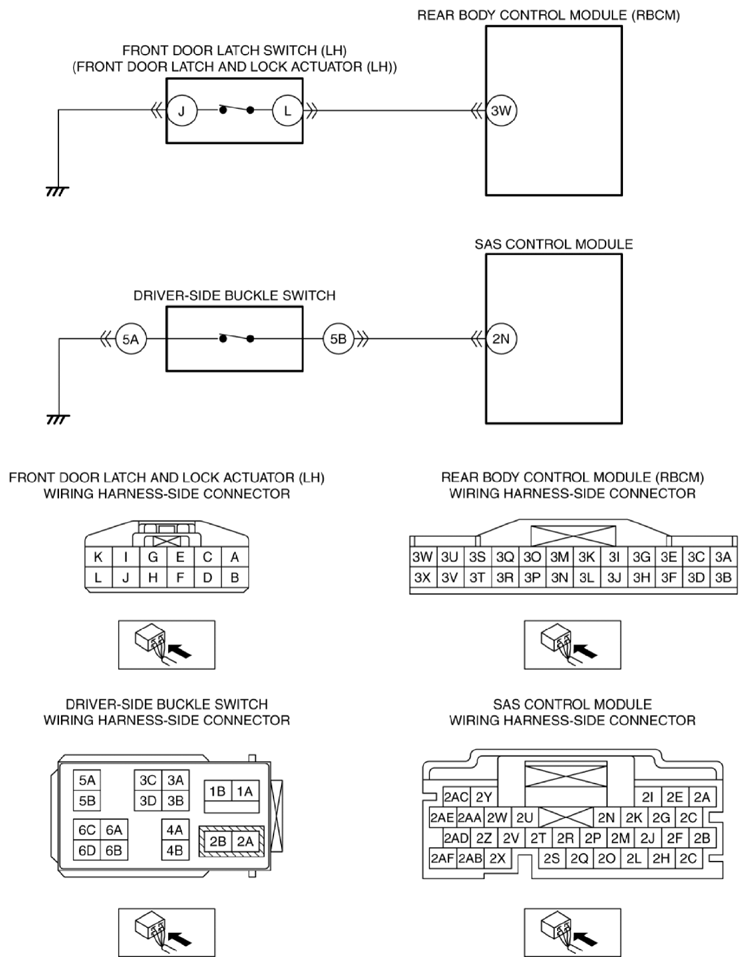

Fig 1: Relay Body Control Module System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
