DTC C2006-01: Electric Parking Brake Motor Gear Unit Circuit Malfunction: Notes

Description	Electric parking brake motor gear unit (LH) circuit malfunction
Detection condition	Electric parking brake control module detects an electric parking motor gear unit (LH) circuit malfunction.
Fail-safe	Not applicable

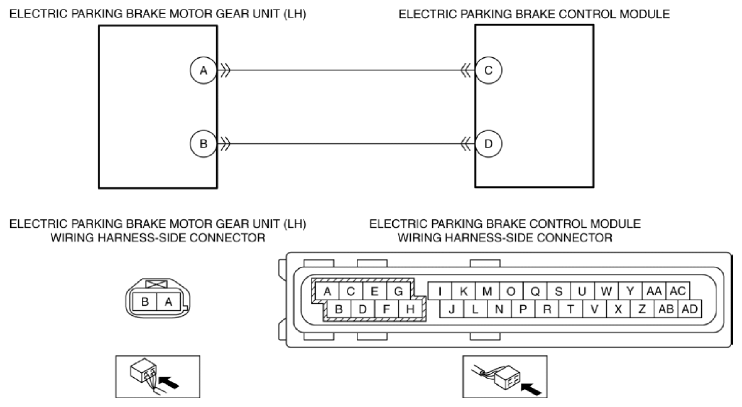

Possible cause	Electric parking brake motor gear unit (LH) connector or terminal malfunction Electric parking brake control module connector or terminal malfunction Short to ground in wiring harness between the following terminals: Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal C Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal D Short to power supply in wiring harness between the following terminals: Electric parking brake motor gear unit (LH) terminal A-Electric parking brake control module terminal C Electric parking brake motor gear unit (LH) terminal B-Electric parking brake control module terminal D Short circuit between electric parking brake motor gear unit (LH) circuits Electric parking brake motor gear unit (LH) malfunction Electric parking brake control module malfunction
