DTC C2005-07: Mechanical Problem Of Electric Parking Brake Motor Gear Unit: Notes

Description	Mechanical problem of electric parking brake motor gear unit (RH)
Detection condition	Electric parking brake control module detects a mechanical problem of the electric parking brake motor gear unit (RH).
Fail-safe	Not applicable

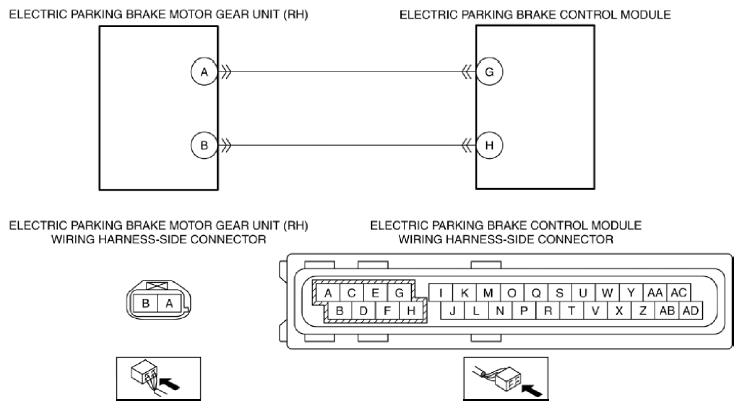

Possible cause	Electric parking brake motor gear unit (RH) connector or terminal malfunction Electric parking brake control module connector or terminal malfunction Open circuit in wiring harness between the following terminals: Electric parking brake motor gear unit (RH) terminal A-Electric parking brake control module terminal G Electric parking brake motor gear unit (RH) terminal B-Electric parking brake control module terminal H Electric parking brake motor gear unit (RH) malfunction Electric parking brake control module malfunction
