Front Brake (Disc) Inspection
>>
Brake Judder Repair Hints
>>
Inspection and repair procedure
Inspection and repair procedure

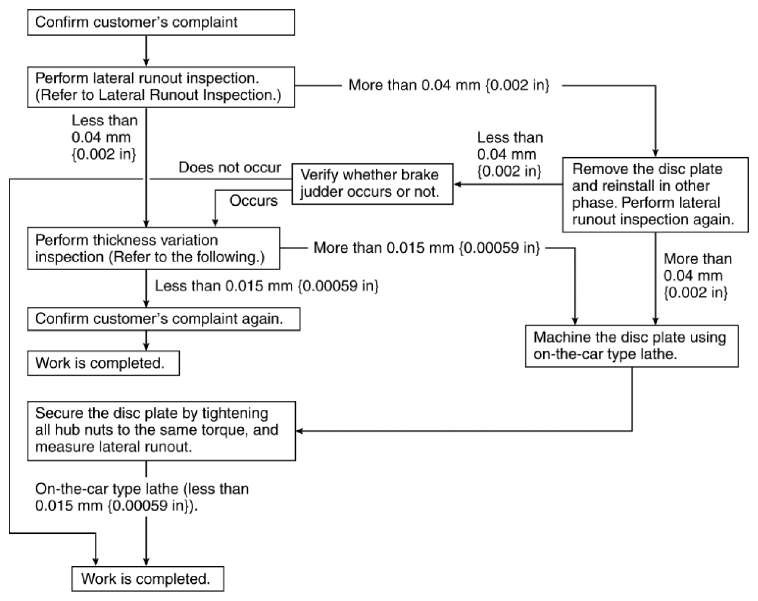

Fig 1: Front Disc Brake Inspection And Repair Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
