Pedal-to-floor Clearance Inspection
- Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf} .

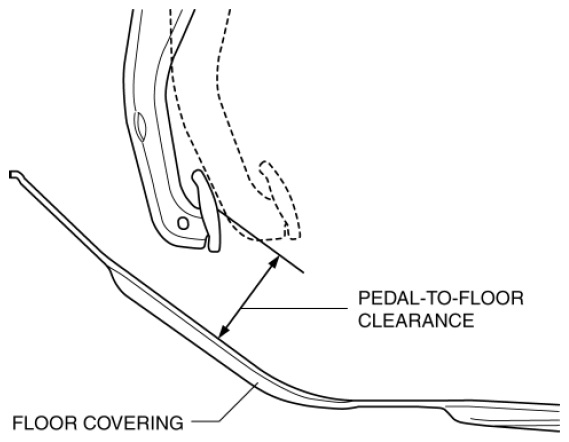

- Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.
Courtesy of MAZDA MOTORS CORP.
- If it is less than the specification, inspect for air in the brake line.
Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf})
- 91 mm {3.6 in} or more
