Pedal Height Inspection

Measure the distance from the center of the upper surface of the pedal pad to the insulator and verify that it is as specified.

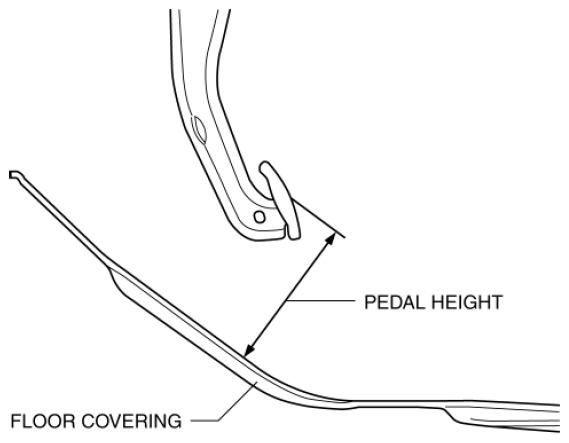

Fig 1: Identifying Distance From Pedal Pad Upper Surface Center To Insulator
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.
  - Power brake unit installation condition
  - Deformation of or damage to the power brake unit fork
  - Brake pedal installation condition
  - Clevis pin wear
- If there is no malfunction in the above items, replace the brake pedal.
Brake pedal height (reference value)
- 136 mm {5.35 in}
