Side Speaker Grille

To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

Fig 1: Identifying Protective Tape Fixing Position
Courtesy of MAZDA MOTORS CORP.

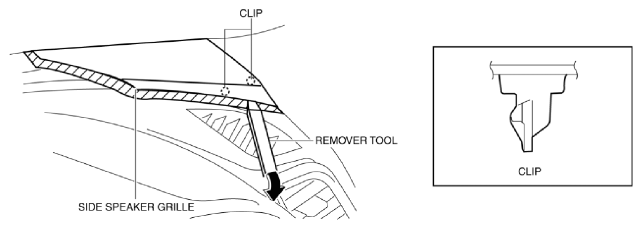

To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

Fig 2: Detaching Side Speaker Grille Clips From Dashboard Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.

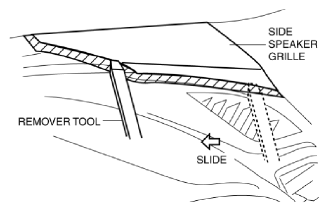

Slide the remover tool to the position shown in the figure.

Fig 3: Sliding Remover Tool
Courtesy of MAZDA MOTORS CORP.

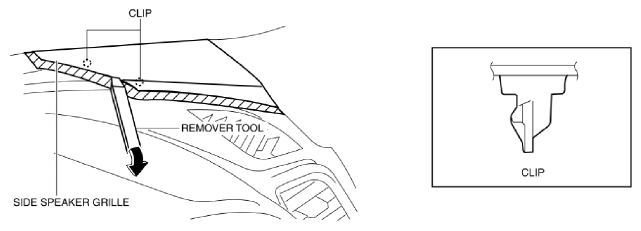

Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.

Fig 4: Moving Remover Tool
Courtesy of MAZDA MOTORS CORP.

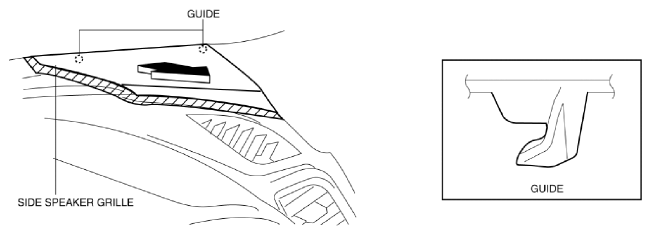

Move the side speaker grille in the direction of the arrow shown in the figure and remove it while pulling out the guide.

Fig 5: Removing Side Speaker Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
