Center Speaker Grille

NOTE:

The clip can be removed easily by placing a piece of wood between the dashboard surface and the remover tool.

Fig 1: Removing Center Speaker Grille Using Remover Tool

Courtesy of MAZDA MOTORS CORP.

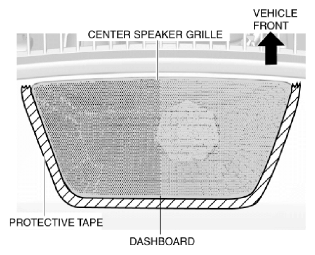

To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

Fig 2: Identifying Protective Tape Fixing Position On Dashboard
Courtesy of MAZDA MOTORS CORP.

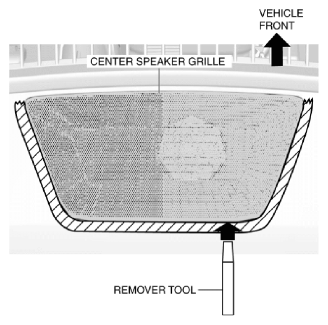

To detach clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

Fig 3: Inserting Remover Tool Into Clearance Between Center Speaker Grille And Dashboard
Courtesy of MAZDA MOTORS CORP.

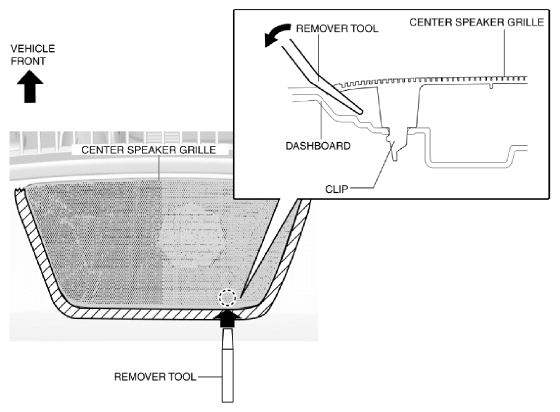

Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.

Fig 4: Detaching Center Speaker Grille Clip From Dashboard Using Remover Tool
Courtesy of MAZDA MOTORS CORP.

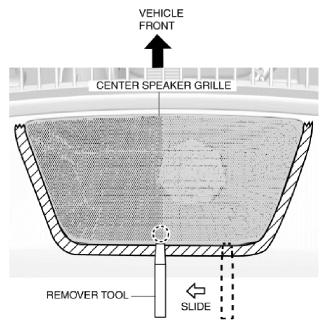

Slide the remover tool to the position shown in the figure.

Fig 5: Sliding Remover Tool
Courtesy of MAZDA MOTORS CORP.

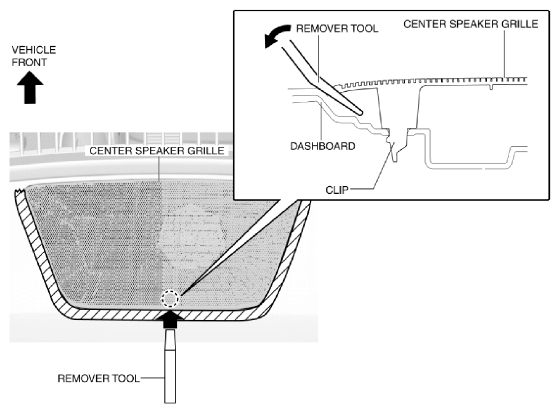

Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.

Fig 6: Detaching Center Speaker Grille Clip From Dashboard Using Remover Tool
Courtesy of MAZDA MOTORS CORP.

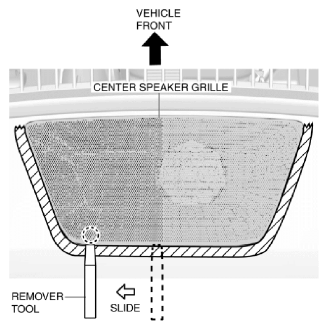

Slide the remover tool to the position shown in the figure.

Fig 7: Sliding Remover Tool
Courtesy of MAZDA MOTORS CORP.

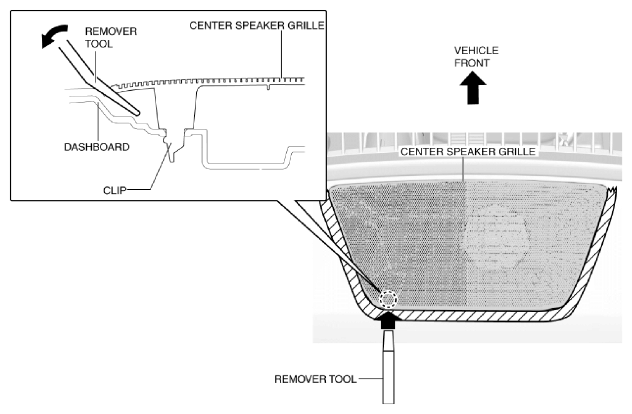

Move the remover tool in the direction of arrow shown in the figure and detach clip from the dashboard.

Fig 8: Moving Remover Tool
Courtesy of MAZDA MOTORS CORP.

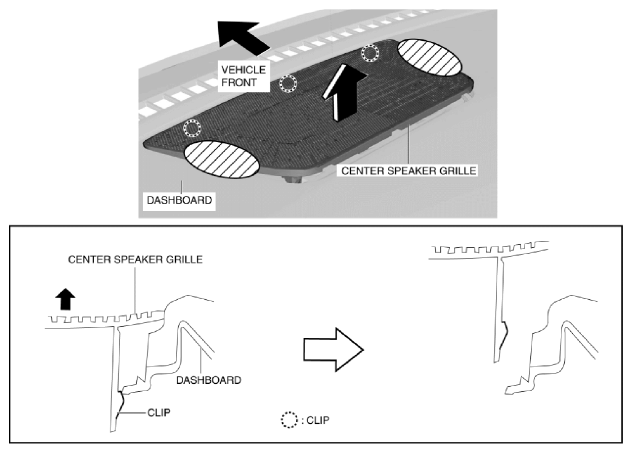

Hold the shaded area of the center speaker grille, move the center speaker grille in the direction of the arrow, and remove the center speaker grille while detaching clips.

Fig 9: Removing Center Speaker Grille
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
