Height Difference Adjustment

  1. Measure the height difference between the trunk lid and the body.

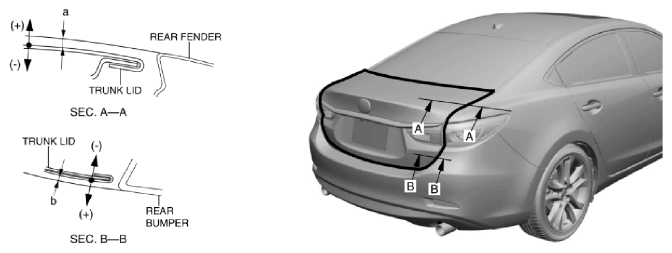

    Fig 1: Identifying Height Difference Between Trunk Lid And Body
    G10987376Courtesy of MAZDA MOTORS CORP.

    Standard Clearance

    • a: -1.8-0.2 mm {-0.070-0.007 in}
    • b: -3.0-1.0 mm {-0.11-0.03 in}
  2. If the trunk lid does not open/close smoothly, adjust it by loosening the trunk lid lock striker installation screw. (See TRUNK LID LOCK STRIKER REMOVAL/INSTALLATION .)
  3. Tighten the bolts or nuts. (See TRUNK LID REMOVAL/INSTALLATION )
  4. Spray or pour water on the door and surrounding area using a hose or high pressure water pressure car wash and verify that there is no water leakage.
