Without Rear Seat Warmer System

Remove the screw.

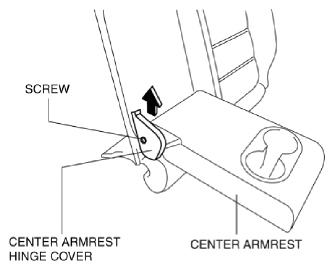

Fig 1: Removing Rear Seat Center Armrest Screw
Courtesy of MAZDA MOTORS CORP.
Remove the center armrest hinge cover in the direction of the arrow shown in the figure.
Remove the bolt.

Fig 2: Identifying Center Armrest Hinge Cover Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Partially peel back the trim of the center armrest hinge and remove the clip in the direction of arrow (1) shown in the figure.
CAUTION:
- Use a rag so that the clip does not fall off before it is removed. Otherwise, the clip may fall into the seat back and cannot be retrieved.

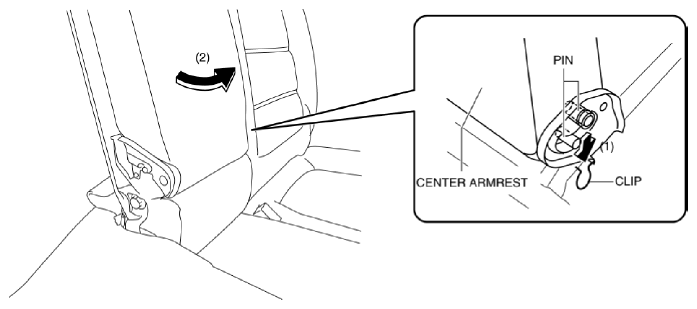

Fig 3: Removing Center Armrest Hinge Clip
Courtesy of MAZDA MOTORS CORP.
Remove the center armrest in the direction of arrow (2) shown in the figure while setting the pins aside.
Install in the reverse order of removal.
