With Rear Seat Warmer System

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the rear seat back. (LH) (See REAR SEAT BACK REMOVAL/INSTALLATION .)
Remove the screw.

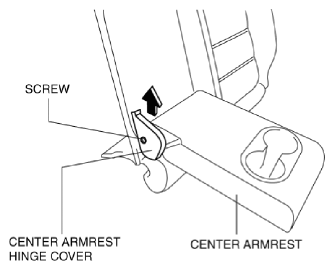

Fig 1: Removing Center Armrest Hinge Cover Screw
Courtesy of MAZDA MOTORS CORP.
Remove the center armrest hinge cover in the direction of the arrow shown in the figure.
Remove the bolt.

Fig 2: Identifying Center Armrest Hinge Cover Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Partially peel back the trim of the center armrest hinge and remove the clip in the direction of arrow (1) shown in the figure.
CAUTION:
- Use a rag so that the clip does not fall off before it is removed. Otherwise, the clip may fall into the seat back and cannot be retrieved.

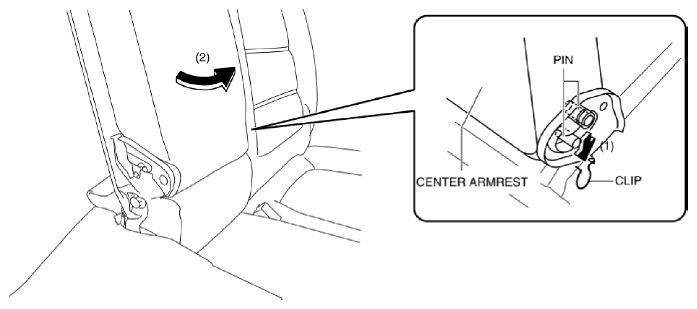

Fig 3: Removing Center Armrest Hinge Clip
Courtesy of MAZDA MOTORS CORP.
Remove the center armrest in the direction of arrow (2) shown in the figure while setting the pins aside.
Unzip the zippers.

Fig 4: Identifying Zippers
Courtesy of MAZDA MOTORS CORP.
Slide the hooks in the order of arrows (1) and (2) shown in the figure to detach them from the rear seat back frame.

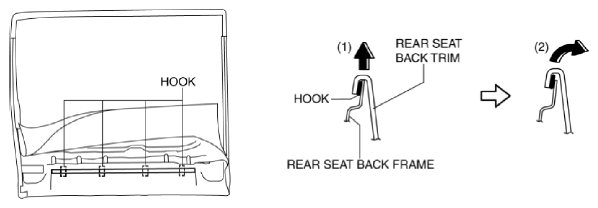

Fig 5: Detaching Hooks From Rear Seat Back Frame
Courtesy of MAZDA MOTORS CORP.
Pull out the wiring harness from the rear seat back and remove the center armrest.

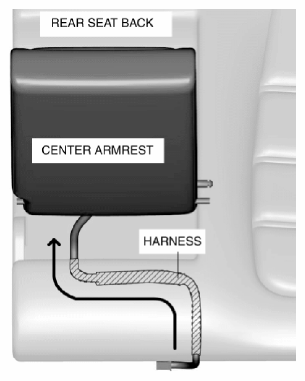

Fig 6: Pulling Out Wiring Harness From Rear Seat Back
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
