Roof Molding Removal

  1. Insert a tape-wrapped flathead screwdriver in the position shown in the figure.

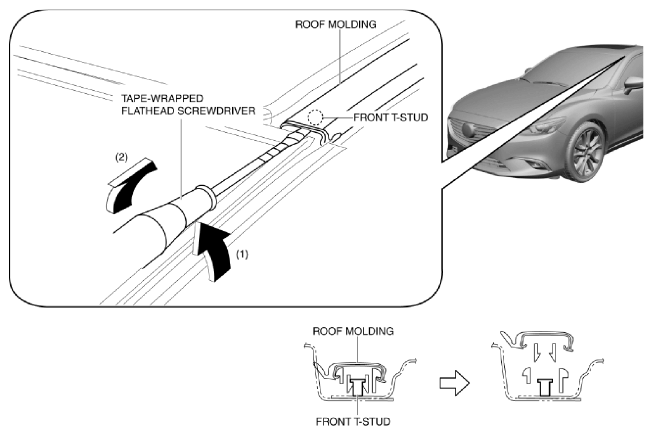

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver In Roof Molding
    G10992112Courtesy of MAZDA MOTORS CORP.
  2. Rotate a tape-wrapped flathead screwdriver in the direction of the arrow in the order of (1), (2) shown in the figure and remove the roof molding from the front T-stud.
  3. Rotate the roof molding in the direction of arrows (3) shown in the figure and remove it starting from the clips at the front of the vehicle.

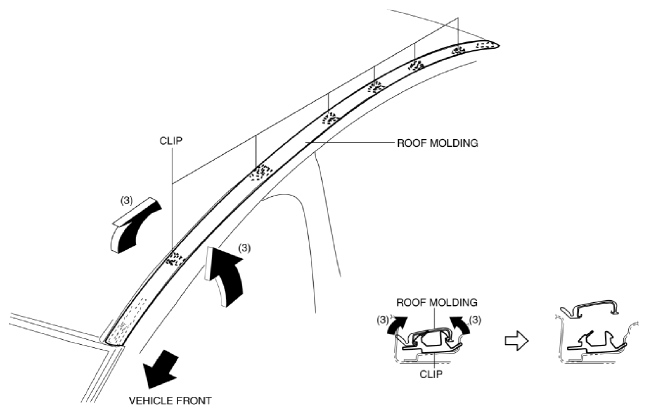

    Fig 2: Removing Roof Molding From Vehicle Front Clips
    G10992113Courtesy of MAZDA MOTORS CORP.
  4. Rotate the roof molding in the direction of arrows (4) shown in the figure and remove the roof molding tab from the rear T-stud.

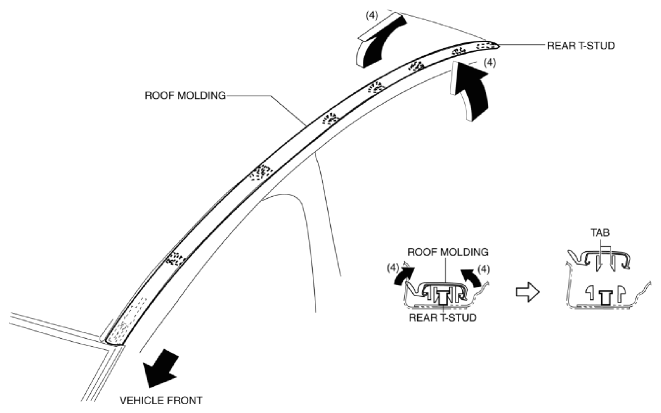

    Fig 3: Removing Roof Molding Tab From Rear T-Stud
    G10992114Courtesy of MAZDA MOTORS CORP.
