Rear Sash Molding Removal

WARNING:

Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

Remove the rear door garnish. (rear side) (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.
CAUTION:
- When remove the double-sided adhesive tape, be careful not to damage clip A.

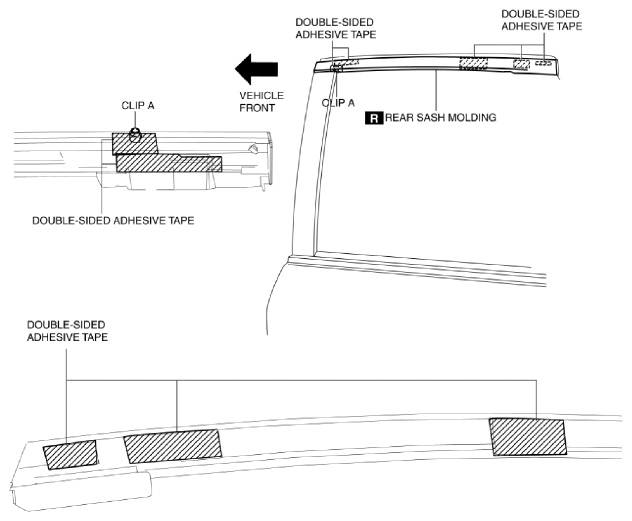

Fig 1: Caution For Removing Double-Sided Adhesive Tape
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver shown in the figure and remove the protector in the direction of arrow (1).

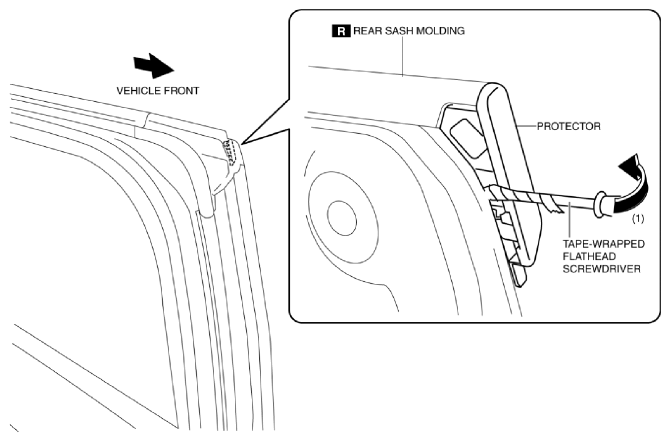

Fig 2: Removing Protector From Rear SASH Molding Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver shown in the figure and remove clip A in the direction of arrow (2).

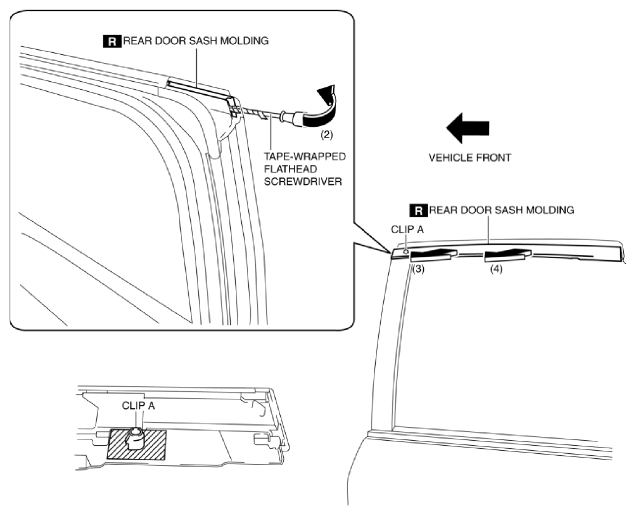

Fig 3: Inserting Tape-Wrapped Flathead Screwdriver In Rear Door SASH Molding
Courtesy of MAZDA MOTORS CORP.
Remove the rear sash molding in the direction of arrow in the order of (3), (4) shown in the figure.
