Rear Pillar Garnish Removal/Installation

  1. Open the rear door.
  2. Pull the rear pillar garnish in the direction of arrow shown in the figure and remove it while detaching the clips.

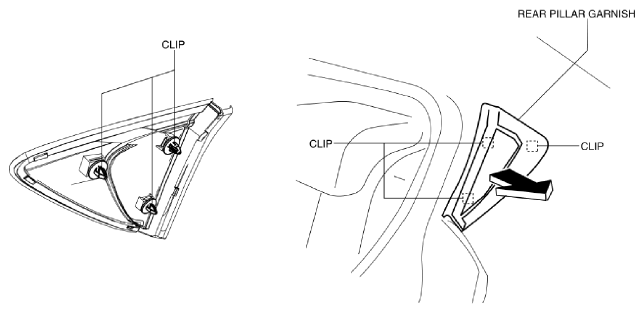

    Fig 1: Pulling Out Rear Pillar Garnish
    G10992087Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
