FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION

  1. Remove the bolts.

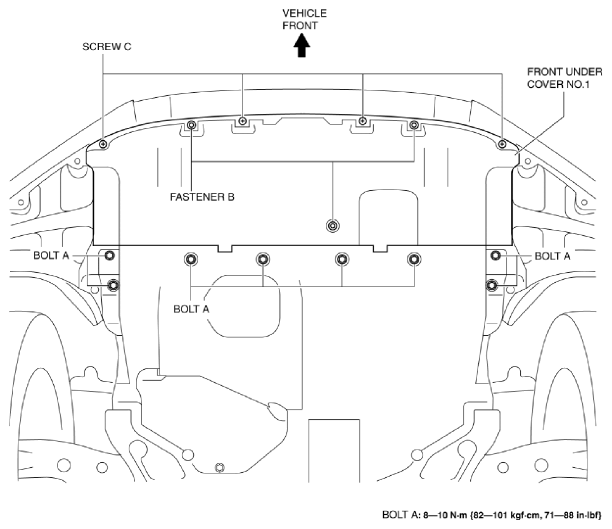

    Fig 1: Identifying Front Under Cover No. 1 With Bolts And Screws
    G10992130Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners.
  3. Remove the screws.
  4. Remove the front under cover No. 1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching guide.

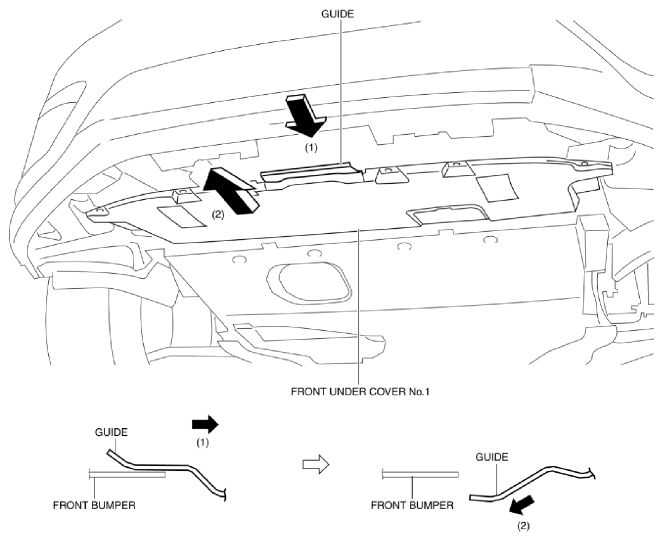

    Fig 2: Removing Front Under Cover No. 1
    G10992131Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
