Identification with the label

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
  5. Verify the supplier name by referring to the label attached to the unit.

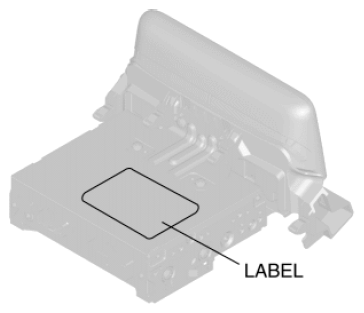

Fig 1: Identifying Audio Unit Label
G10987095Courtesy of MAZDA MOTORS CORP.
NOTE:
  • The supplier varies depending on the units. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form using the following procedures.
