Tire Pressure Monitoring System Set Switch Inspection

  1. Remove the TPMS set switch. (See TIRE PRESSURE MONITORING SYSTEM SET SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the resistance between the TPMS set switch terminals B and C is as indicated in the table.
    • If not as indicated in the table, replace the TPMS set switch.

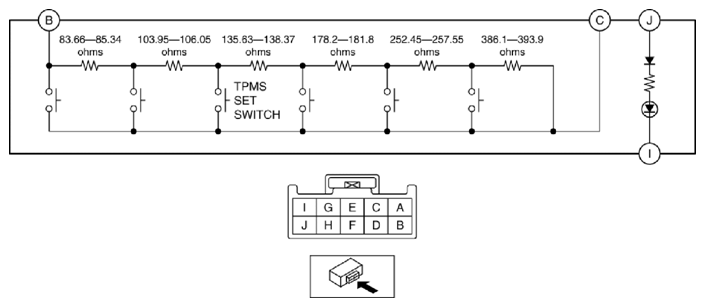

    Fig 1: Checking Resistance Between TPMS Set Switch Terminals B And C
    G10985705Courtesy of MAZDA MOTORS CORP.
    TPMS SET SWITCH SPECIFICATION

    Terminal Test condition Resistance (ohms)
    B-C TPMS set switch pressed 187.61-191.39
    All switches released 1139.99-1163.01
  3. Apply battery voltage to TPMS set switch terminal J, and connect terminal I to ground.
  4. Verify that the LED illuminates.
    • If there is any malfunction, replace the TPMS set switch.
