DTC U2105-02: Drive Selection Switch Circuit Malfunction: Notes

Description	Drive selection switch circuit malfunction
Detection condition	Instrument cluster detects an open circuit in the drive selection switch circuit for 5 s or more  with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

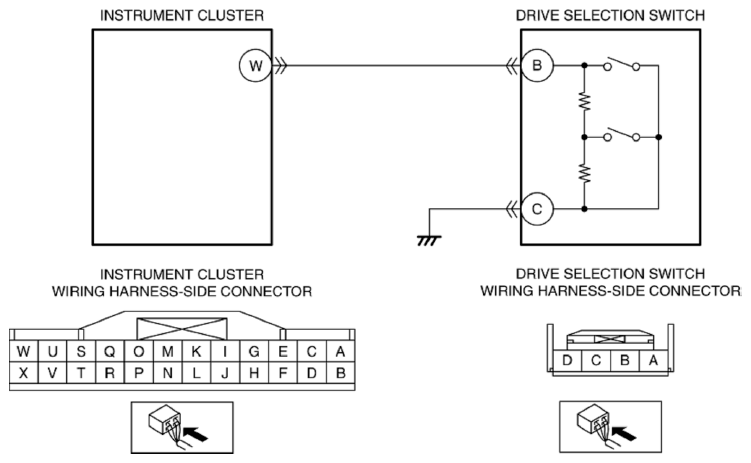

Possible cause	Drive selection switch connector or terminal malfunction Open circuit in wiring harness between drive selection switch terminal C and body ground Instrument cluster connector or terminal malfunction Open circuit in wiring harness between Instrument cluster terminal W and drive selection switch terminal B Drive selection switch malfunction Instrument cluster malfunction
