DTC U2013-13: Cluster Switch Circuit Malfunction: Notes

Description	Cluster switch circuit malfunction
Detection condition	Instrument cluster detects an open circuit in the cluster switch circuit for 5 s or more  with the ignition switched ON (engine off or on).
Fail-safe function	Not applicable

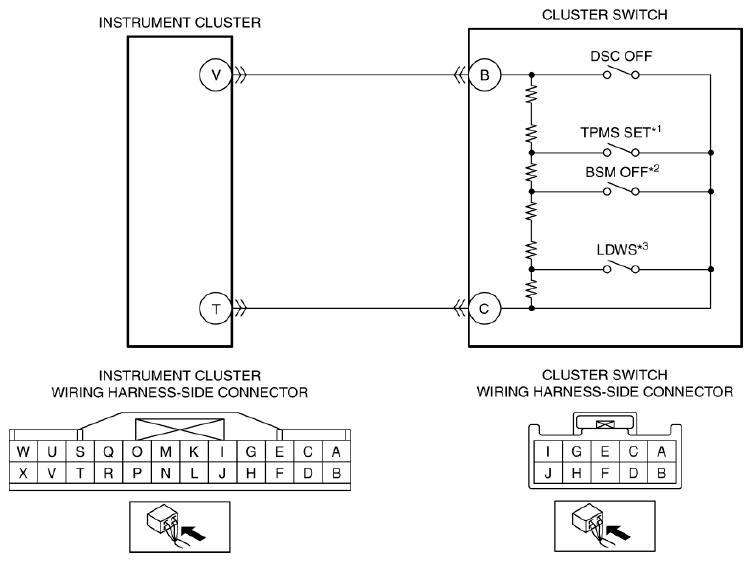

Possible cause	Cluster switch connector or terminal malfunction Instrument cluster connector or terminal malfunction Open circuit in wiring harness between the following terminals: Instrument cluster terminal V-Cluster switch terminal B Instrument cluster terminal T-Cluster switch terminal C Cluster switch malfunction Instrument cluster malfunction
*1With tire pressure monitoring system (TPMS)  *2With blind spot monitoring (BSM) system  *3With lane departure warning system (LDWS)
