Water Hose
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

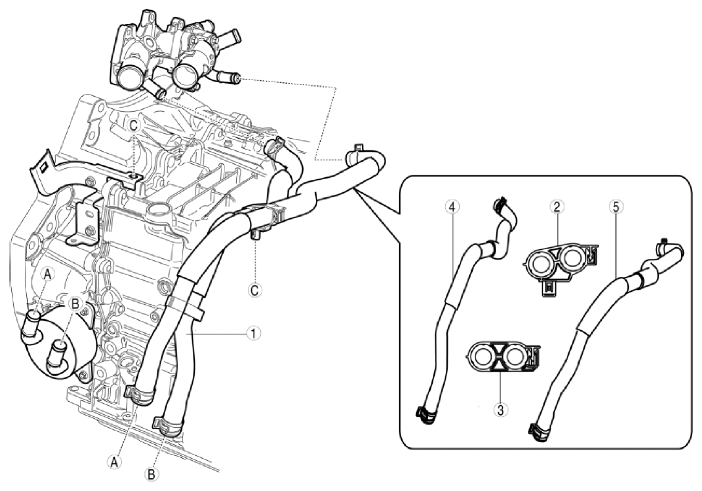

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Water hose component
(See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
(See Water Hose No. 1 (outlet case side) Installation Note .)2 Hose clip No. 1 3 Hose clip No. 2 4 Water hose No. 1
(See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
(See Water Hose No. 2 (bypass pipe side) Installation Note .)5 Water hose No. 2
(See Water Hose No. 1 and No. 2 (oil cooler side) Installation Note .)
(See Water Hose No. 2 (bypass pipe side) Installation Note .) - Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
