Drive Plate Installation Bolts Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Set the SST  against the drive plate.

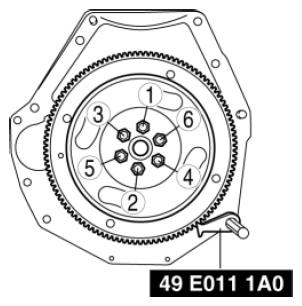

    Fig 1: Setting SST Against Drive Plate
    G10986327Courtesy of MAZDA MOTORS CORP.
  2. Loosen the drive plate installation bolts uniformly in two or three steps in the order shown in the figure, then remove the bolts and the drive plate.
