Transaxle mounting bolt removal note

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Remove the transaxle carefully, holding it steady. If the transaxle falls it could be damaged or cause injury.

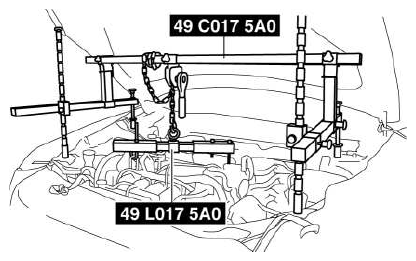

  1. Adjust the SST  and lean the engine toward the transaxle.
    Fig 1: Adjusting SST
    G10986303Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle on a jack.
    Fig 2: Supporting Transaxle On Jack
    G10986304Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle mounting bolts (lower side).
  4. Remove the transaxle.
