On-Board Diagnostic System Wiring Diagram
On-Board Diagnostic System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

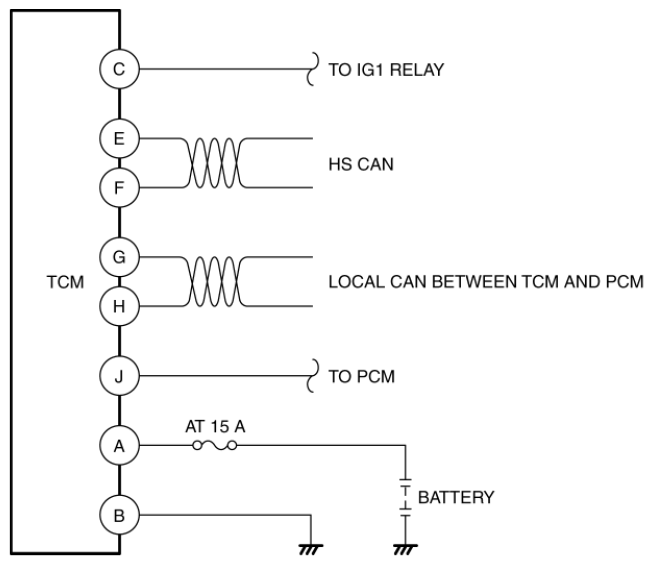

Fig 1: FW6A-EL On-Board Diagnostic System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
