Brake Hose (Front) Removal/Installation

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

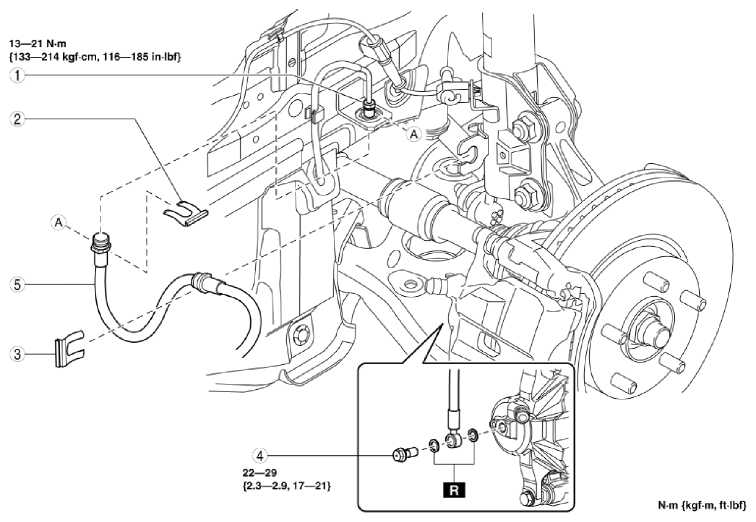

Fig 1: Front Brake Hose Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake pipe
2	Clip
3	Clip
4	Bolt
5	Brake hose
