Front and rear

Both sides of the vehicle, on side sills.

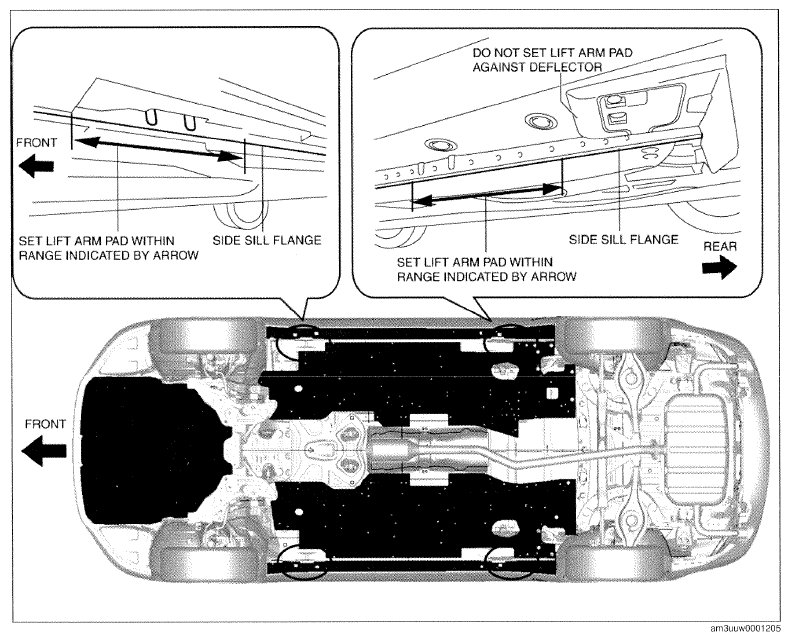

Fig 1: Identifying Vehicle Lift Positions
Courtesy of MAZDA MOTORS CORP.
