Indicator Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Detach tabs shown in the figure and remove the indicator.

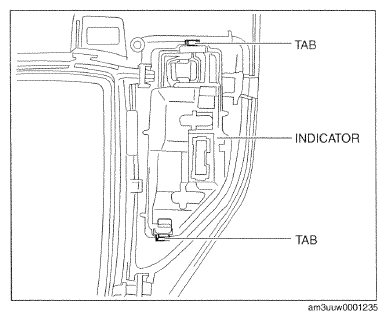

    Fig 1: Identifying Tabs And Indicator
    G09759706Courtesy of MAZDA MOTORS CORP.
