Cable Outer End (Transaxle Side) Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the cable outer end (transaxle side) to the bracket so that the marking is in the area of the arrow shown in the figure.

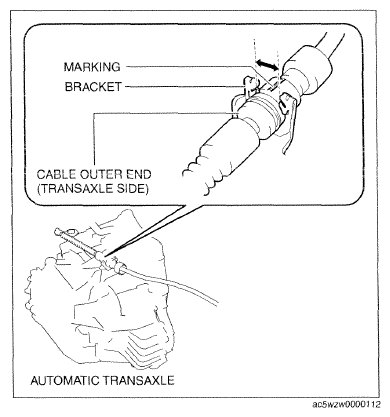

    Fig 1: Identifying Cable Outer End And Bracket Marking Area
    G09759713Courtesy of MAZDA MOTORS CORP.
