Steering Shift Switch Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove in the order indicated in the table.

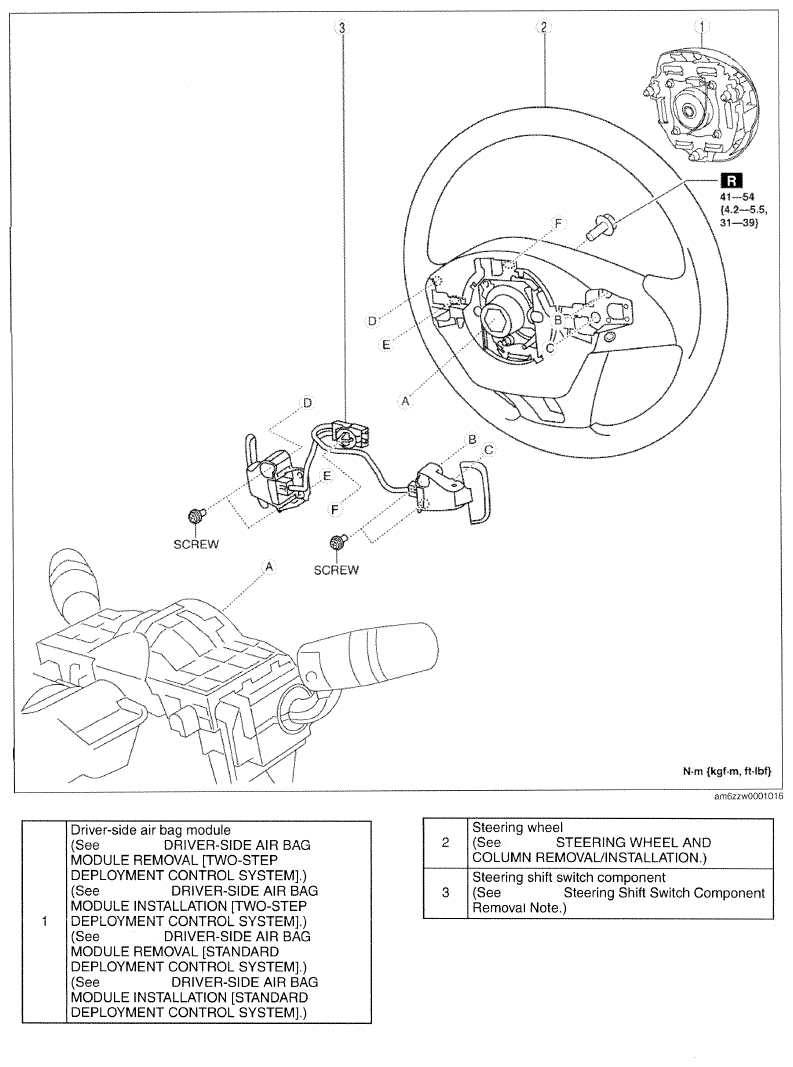

    Fig 1: Steering Shift Switch, Steering Wheel And Driver Side Air Bag Module With Torque Specifications
    G09783136Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
