Water Hose No. 1 (outlet case side) Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the water hose No. 1 to the outlet case as shown in the figure with the hose clamp expanded.
    NOTE:
    • A new water hose No. 1 and hose clamp are attached.

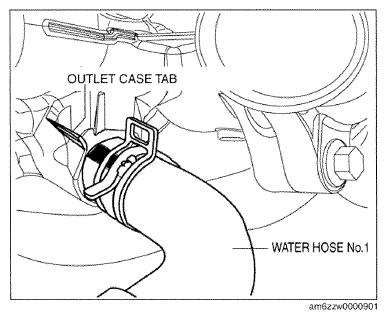

    Fig 1: Identifying Water Hose No. 1, Tab And Outlet Case
    G09783235Courtesy of MAZDA MOTORS CORP.
  2. Install the hose clamp so that center A of the hose clamp tab is within the range shown in the figure.
    • Verify that the installation angle of the hose clamp is within the range shown in the figure.
  3. Verify that the hose clamp does not interfere with any other components.

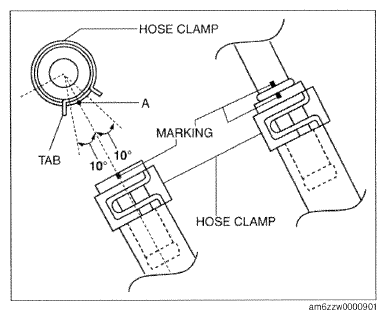

    Fig 2: Identifying Water Hose Clamp Position
    G09783236Courtesy of MAZDA MOTORS CORP.
