Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle, (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

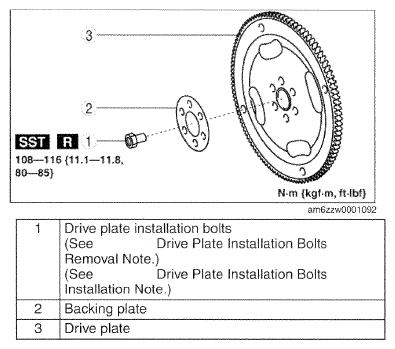

    Fig 1: Identifying Drive Plate, Backing Plate And Bolts
    G09783215Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
