On-Board Diagnostic System Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

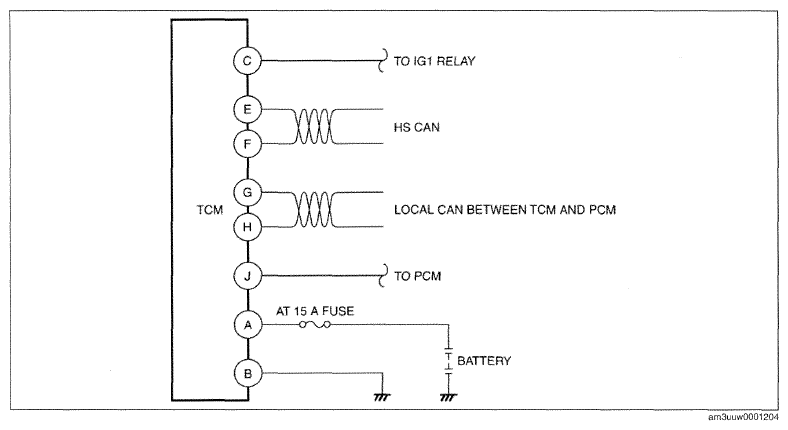

Fig 1: On-Board Diagnostic System - Wiring Diagram (FW6A-EL)
G09771093Courtesy of MAZDA MOTORS CORP.
