Troubleshooting Procedure

WARNING: This page is about a different variant/trim than selected.

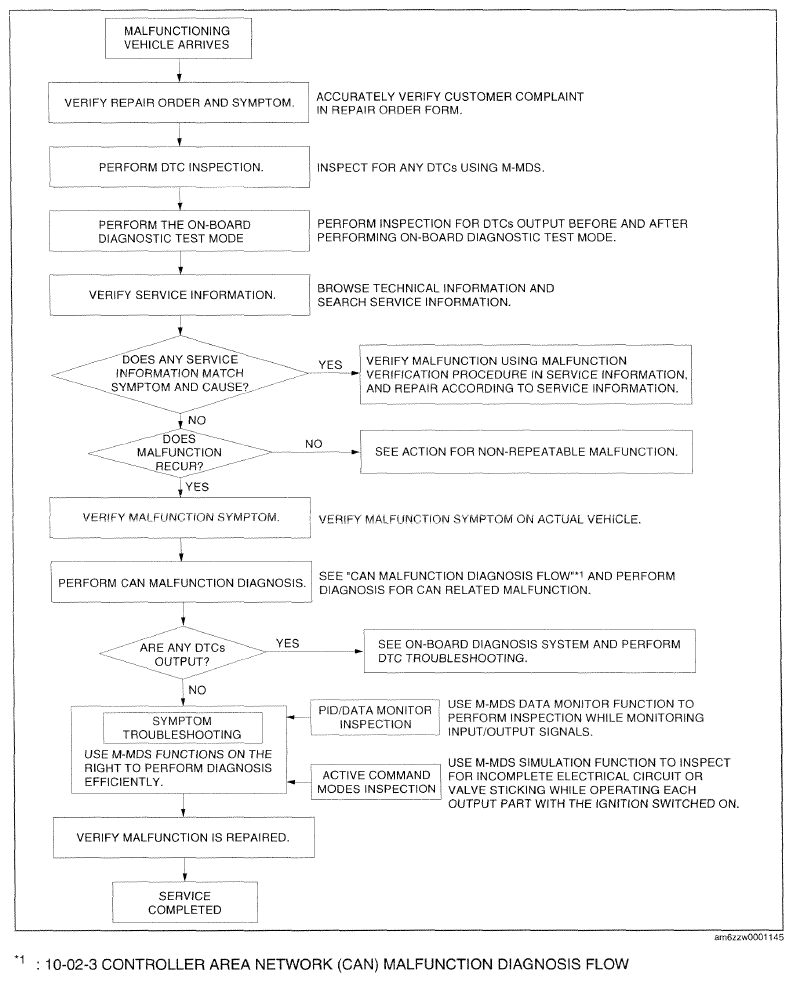

Fig 1: Troubleshooting Procedure Chart
G09759320Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
