Front Scuff Plate Removal/Installation

  1. Grasp the shaded area shown in the figure, detach tab A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure then detach the hook A, clip A, and pin A while pulling in the direction of the arrow (2).

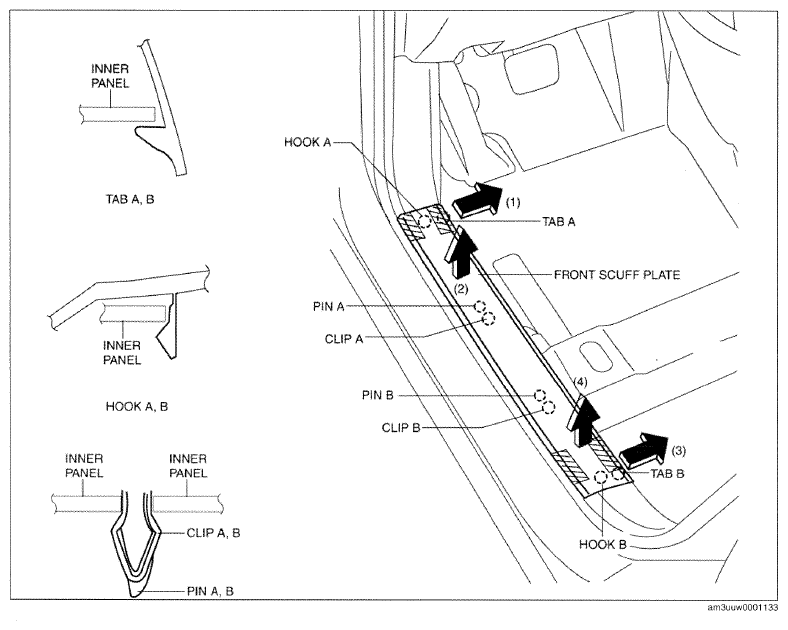

    Fig 1: Pulling Front Scuff Plate
    G09772338Courtesy of MAZDA MOTORS CORP.
  2. Grasp the shaded area shown in the figure, detach tab B while pulling the front scuff plate in the direction of the arrow (3) shown in the figure, then detach the hook B, clip B and pin B while pulling in the direction of the arrow (4).
  3. Install in the reverse order of removal.
