Mazda
>>
2014
>>
3 SV, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
On-Board Diagnostic - Instrument Cluster
>>
On-Board Diagnostic Wiring Diagram [Instrument Cluster]
On-Board Diagnostic Wiring Diagram [Instrument Cluster]

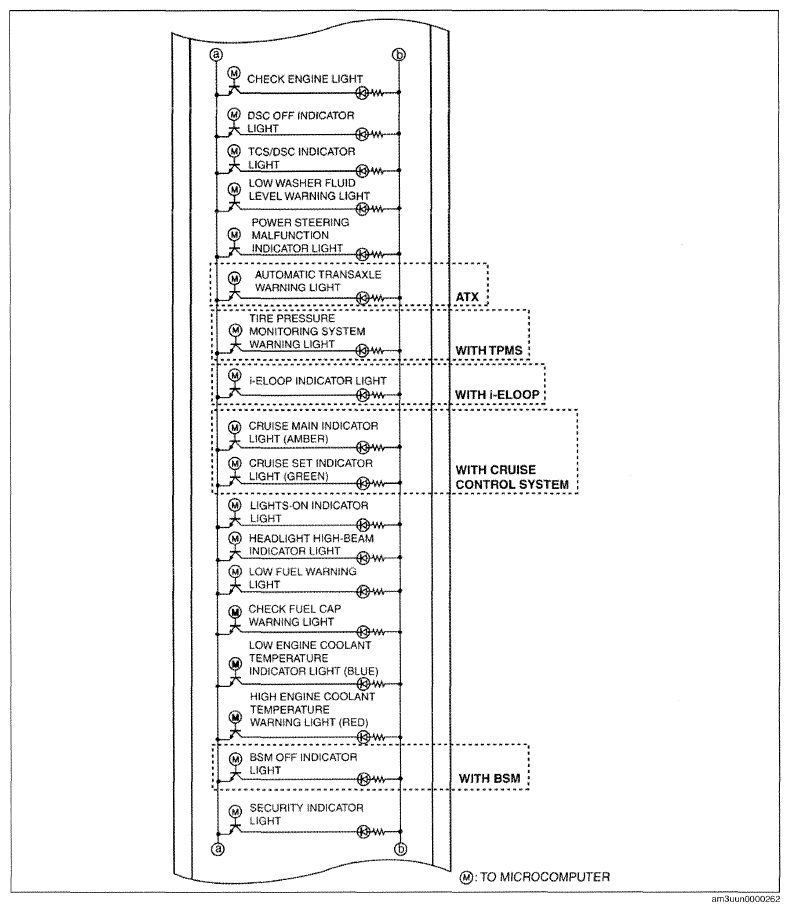

Fig 1: On-Board Diagnostic - Wiring Diagram (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

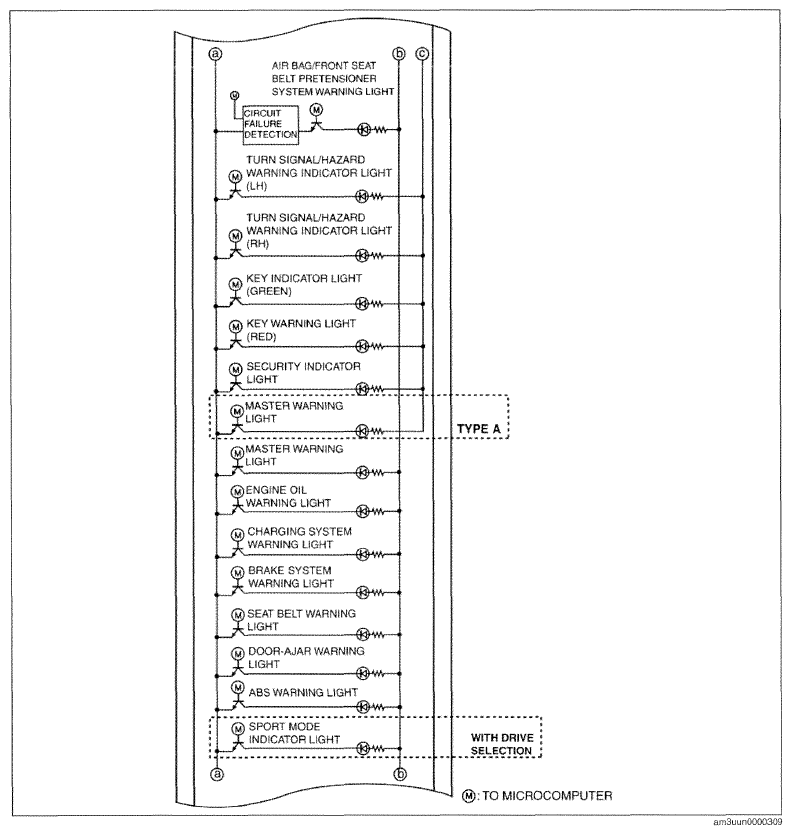

Fig 2: On-Board Diagnostic - Wiring Diagram (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

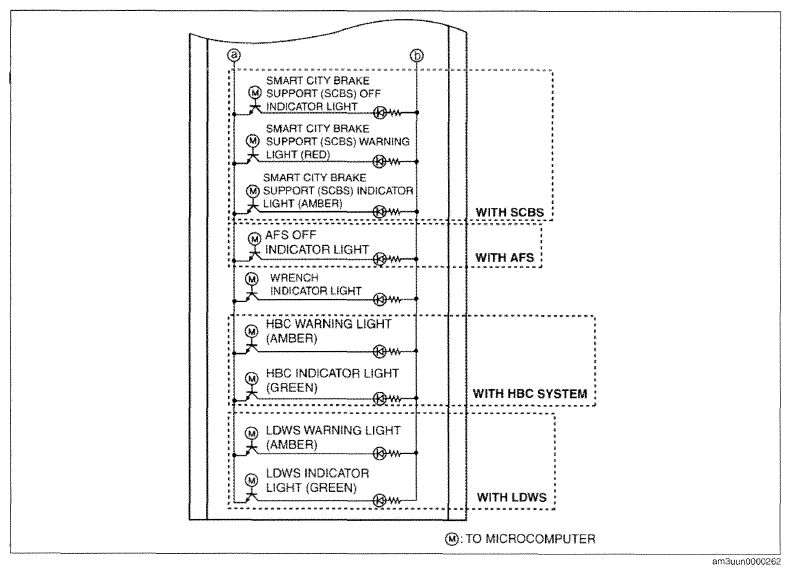

Fig 3: On-Board Diagnostic - Wiring Diagram (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

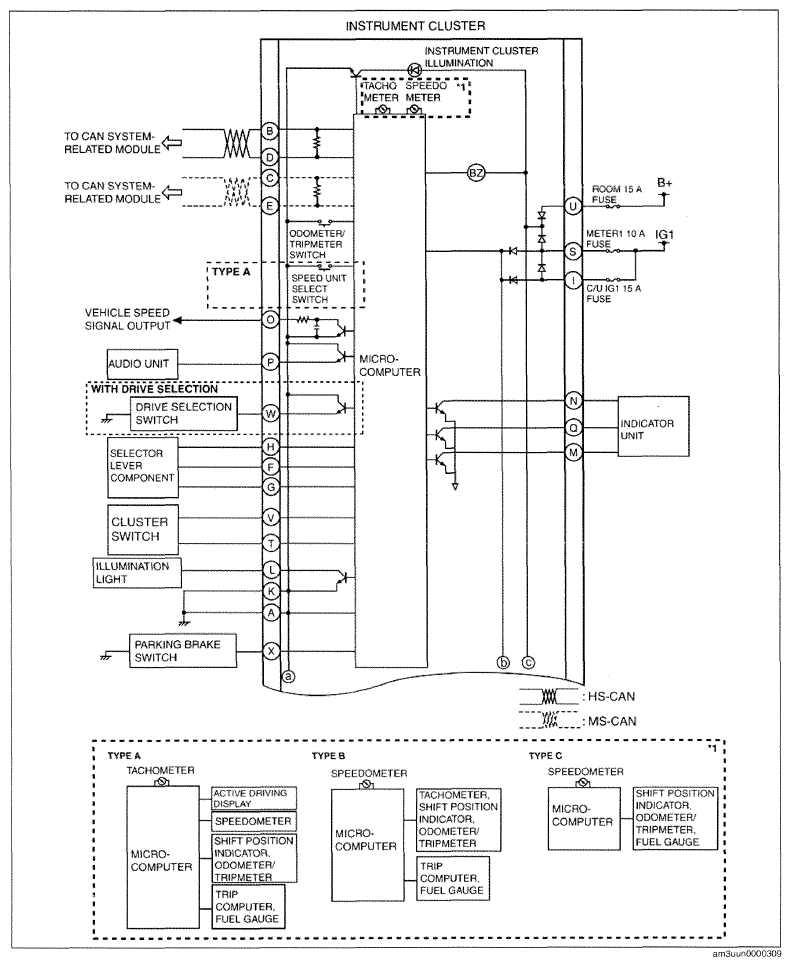

Fig 4: On-Board Diagnostic - Wiring Diagram (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
