Bumper Reinforcement Removal/Installation: Front

WARNING:
  • Because the shroud panel is installed to the bumper reinforcement, support the shroud panel using a jack before removing the bumper reinforcement so as not to apply excessive force to the shroud panel.
  • Since the servicing is performed with the hood open, secure the hood using a piece of wood to prevent it from falling.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    2. Front energy-absorbing form (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION .)
    3. Washer tank (See WASHER TANK REMOVAL/INSTALLATION .)
    4. Horn (See HORN REMOVAL/INSTALLATION .)
  3. Set the electric power steering oil pump component out of the way. (See ELECTRIC POWER STEERING OIL PUMP COMPONENT REMOVAL/INSTALLATION .)
  4. Remove the bolt A.

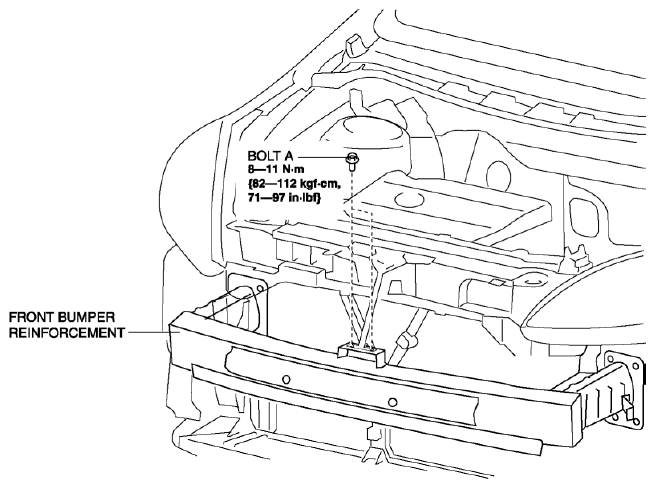

    Fig 1: Front Bumper Reinforcement And Bolt A With Torque Specifications
    G08152732
  5. Remove the bolt B.

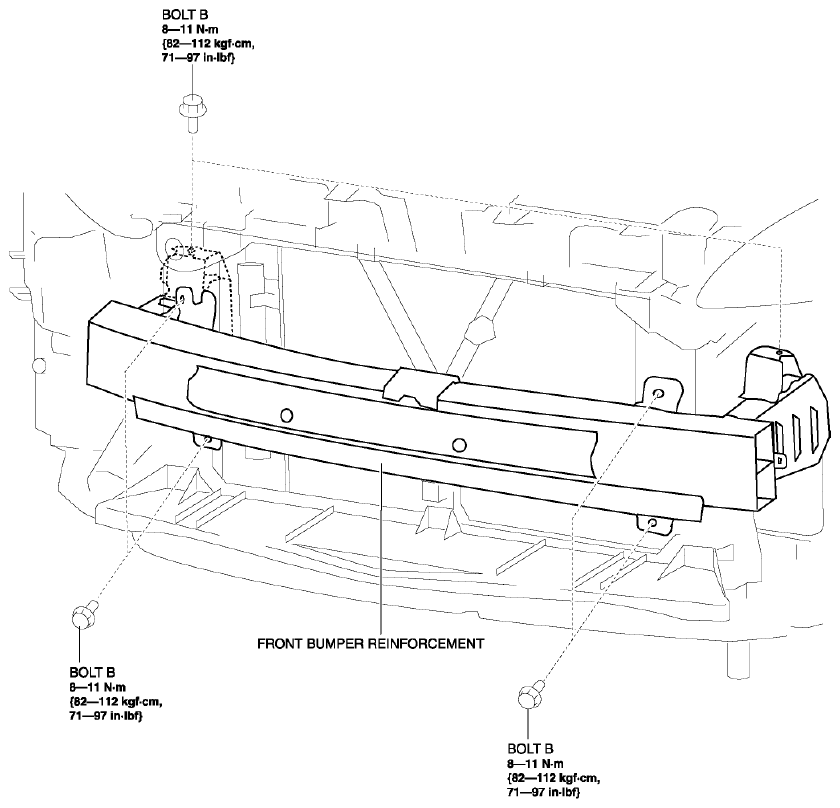

    Fig 2: Front Energy-Absorbing Form And Bolts B With Torque Specifications
    G08152733
  6. Remove the bolt C.

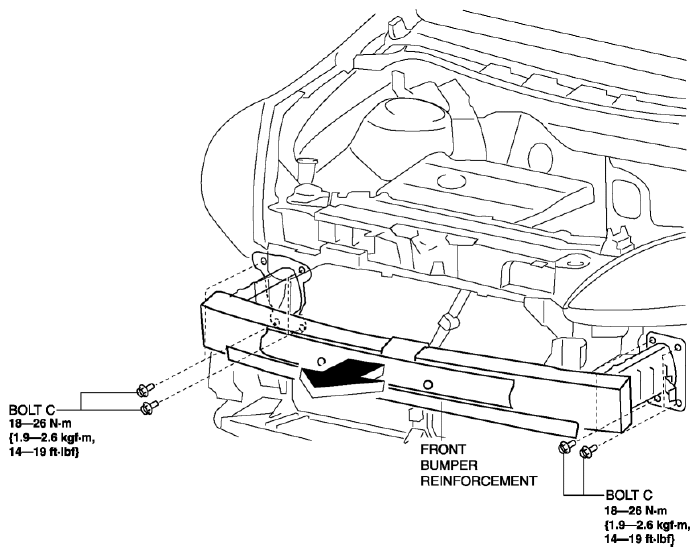

    Fig 3: Front Bumper Reinforcement With Torque Specifications
    G08152734
  7. Remove the front bumper reinforcement in the direction of the arrow shown in the figure.
  8. Install in the reverse order of removal.
